Product Overview

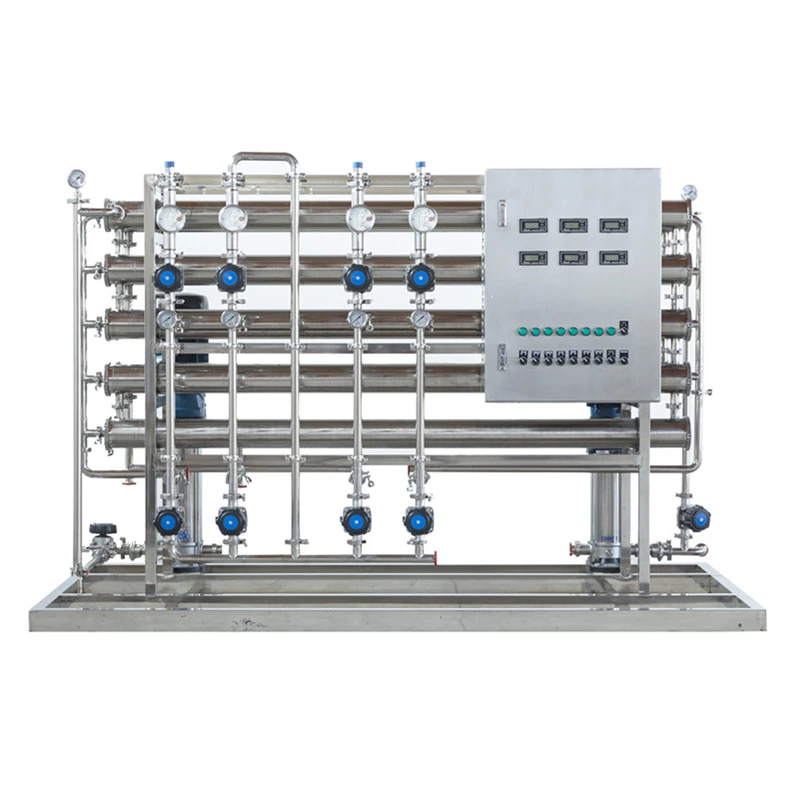

Qhov no yog ib qho kev lag luam - qib kev kho dej ua ke tsim los ua kom ruaj khov siab - dej huv rau ntau yam kev xav tau. Nws suav nrog plaub qhov kev ua haujlwm tseem ceeb: ntu pretreatment, RO unit, hluav taws xob tswj qhov system, thiab cov kav dej sib dhos. Cov khoom no ua haujlwm ua ke los ua cov dej nyoos rau hauv cov dej ntshiab uas ua tau raws li koj qhov yuav tsum tau ua.

Feature Highlights

High Purity tso zis

Nws muab cov dej huv huv nrog cov conductivity tsawg dua los yog sib npaug li 10 μS / cm, ua tau raws li kev nruj siab siab -kawg kev ua haujlwm purity.

Kev tsis lees paub siab

Nws ntaus ntau dua lossis sib npaug rau 99% kev tsis lees ntsev, txiav cov dej pov tseg thiab koj cov nqi ua haujlwm ntev -.

Kev tsim kho muaj zog

Lub kaw lus siv SS304 stainless hlau rau qhov tseem ceeb wetted qhov chaw. Qhov no corrosion- cov khoom siv tiv taus zoo heev ua rau lub cev muaj kev pab cuam lub neej.

Comprehensive Pretreatment

Nws muaj tag nrho cov pretreatment modules los tiv thaiv RO daim nyias nyias, zoo txuas ntxiv cov membranes 'kev pab cuam lub neej.

Kev siv hluav taws xob zoo

Nws tag nrho cov kev siv hluav taws xob nyob qis dua 8.5kW, txiav koj cov nqi hluav taws xob txhua hnub kom zoo.

Technical Specifications

Tag nrho cov khoom lag luam tsis raug teeb tsa hauv cov lus hauv qab no rau koj qhov kev kuaj pom tseeb:

Core System Parameters
Parameter	Specification
Qauv Qauv	YN-RO-6
System Capacity	6 m³/h
Tus nqi rov qab	Ntau dua lossis sib npaug li 70%
Desalination tus nqi	Ntau dua lossis sib npaug li 99%
Qhov hluav taws xob conductivity	Tsawg dua lossis sib npaug li 10 μS / cm
Kev Ua Haujlwm Siab	1.0-1.6MPa (≈10-16 bar)
Tag Nrho Cov Hluav Taws Xob	Tsawg dua los yog sib npaug li 8.5 kW
Max Pub Dej TDS	Tsawg dua lossis sib npaug li 2000 ppm
Pub Dej Kub Kub	5-45 degree
Pub Dej Turbidity Limit	Tsawg dua lossis sib npaug rau 1 NTU
SDI (15 feeb)	Tsawg dua los yog sib npaug 3

Pretreatment Parts Parameters
Lub Npe	Specification
Raw dej tank	SS304 khoom, 1set
Ntau -media filter	SS304 khoom, 1set
Activated carbon lim	1000 × 1900, SS304 khoom, 1set
Cartridge lim	240 × 1500 F, RP lub cev, 1 teeb

RO System Parts Parameters
Lub Npe	Specification
RO daim nyias nyias	8040 siab - hom tsis lees paub, 6 daim
Membrane vaj tse	8040-2, FRP khoom, 3 units
Conductivity meter	0-2000μS / cm ntau, 2 units

Hluav taws xob qhov chaw Parameters
Lub Npe	Specification
Tswj qhov system	PLC tsis siv neeg tswj, 1 teeb
Tswj txee	Standard configuration, 1 unit

Piping thiab Storage Parts Parameters
Lub Npe	Specification
Cov kav dej thiab li qub	DN50/40/DN25/DN20/DN15, PN16, sib xyaw SS304 thiab U-PVC, 1 ntau
Cov dej ntshiab huv	SS304 khoom, 1set

Daim ntawv thov Scenario

Electronics Manufacturing

Electronics factories xav tau ultra{0}} dej ntshiab rau kev tsim khoom. Qhov no system muab dej nrog tsawg conductivity. Nws tiv thaiv impurities los ntawm kev puas tsuaj rau koj Circuit Court boards los yog cov khoom, thiab txhawb koj cov kab ntau lawm ruaj khov.

Kev ua zaub mov thiab dej haus

Cov neeg tsim khoom noj thiab dej haus xav tau dej huv, nyab xeeb rau lawv cov khoom. Qhov system no tshem tawm cov kab mob tsis zoo los ntawm cov dej nyoos. Nws ua kom koj cov khoom kawg muaj kev nyab xeeb thiab saj zoo, thiab pab koj ua tau raws li cov qauv kev nyab xeeb khoom noj hauv tebchaws thiab thoob ntiaj teb.

Laboratory Water Supply

Cov chaw tshawb fawb xav tau cov dej ntshiab zoo ib yam rau kev sim thiab kev sim. Qhov system no muab ruaj khov siab - dej purity. Nws pab koj kom tau txais cov txiaj ntsig tau zoo thiab txhim khu kev qha, thiab txo cov teeb meem ntawm kev yuav thiab khaws cov dej ntshiab hauv lub raj mis.

Customization Options

Kho tus nqi ntws

Peb tuaj yeem hloov cov dej ntshiab kom haum rau koj qhov kev thov ntau lawm.

Cov khoom siv kho dua tshiab

Txhim kho qhov tseem ceeb rau SS316L stainless hlau rau tshwj xeeb corrosive lossis tu cev xav tau.

Advanced automation

Ntxiv pob PLC kom yooj yim xyuas qhov system thiab tswj chaw taws teeb.

Kev pabcuam OEM / ODM

Peb txhawb kev tsim thiab tsim khoom lag luam raws li koj xav tau.

Vim Li Cas Xaiv Peb

Peb yog cov chaw tsim khoom lag luam ntseeg siab rau cov neeg siv khoom thoob ntiaj teb. Nov yog cov laj thawj tseem ceeb uas koj tuaj yeem xaiv peb rau koj qhov project:

10 Xyoo ntawm kev tsim khoom

Peb muaj ntau tshaj 10 xyoo ntawm kev paub hauv kev lag luam dej kho mob. Peb paub yuav ua li cas los tsim cov kev txhim khu kev qha uas haum cov neeg siv khoom thoob ntiaj teb sib txawv.

Daim ntawv pov thawj thoob ntiaj teb

Peb tau txais ISO9001 ntawv pov thawj. Peb cov khoom ua tau raws li kev cai thoob ntiaj teb thiab kev nyab xeeb.

Kev daws qhov project

Peb muab cov kev daws teeb meem tag nrho rau peb cov neeg siv khoom. Peb ua txhua yam los ntawm kev tsim, tsim khoom, kev teeb tsa mus rau tom qab - kev muag khoom. Koj tsis tas yuav txhawj txog ib feem ntawm tag nrho qhov project.

FAQ

Q1: Vim li cas qhov no RO-EDI system suav nrog ntau- xov xwm lim thiab cov tshuaj softener hauv kev kho?

A1: Cov lim dej ntau- media lim tshem tawm cov khib nyiab, colloids, thiab cov khoom loj ntawm cov dej nyoos. Nws txwv koj RO daim nyias nyias kom tsis txhob txhaws. Lub softener tshem tawm dej hardness. Nws tiv thaiv scale los ntawm kev tsim ntawm daim nyias nyias. Ob qho tib si ua haujlwm ua ke los tiv thaiv daim nyias nyias thiab ua kom lawv lub neej ua haujlwm ntev.

Q2: Peb puas tuaj yeem kho cov khoom siv?

A2: Yog, koj tuaj yeem ua tau. Peb muab cov kev xaiv tseem ceeb customization kom haum rau koj cov kev xav tau tshwj xeeb. Koj tuaj yeem qhia peb koj qhov yuav tsum tau ua, thiab peb yuav ua qhov tsim nyog rau koj.

Q3: Puas yog koj lub tuam txhab ua lag luam lossis chaw tsim khoom?

A3: Peb yog cov chaw tsim khoom ncaj qha. Peb muaj peb tus kheej R & D pab neeg, Hoobkas, thiab pab pawg export. Peb koom ua ke R & D, ntau lawm, thiab kev lag luam thoob ntiaj teb. Koj tuaj yeem tau txais lub Hoobkas- tus nqi ncaj qha thiab tus kws tshaj lij- nres kev txhawb nqa los ntawm peb.

Q4: Cov dej nyoos no tuaj yeem ua haujlwm li cas?

A4: Cov txheej txheem no tuaj yeem tswj tau ntau hom dej nyoos, suav nrog dej kais dej, dej zoo, dej khib nyiab, thiab cov txheej txheem dej khib nyiab. Nws tuaj yeem ua haujlwm ruaj khov ntev npaum li cov dej pub TDS qis dua 2000 ppm.
