Product Overview

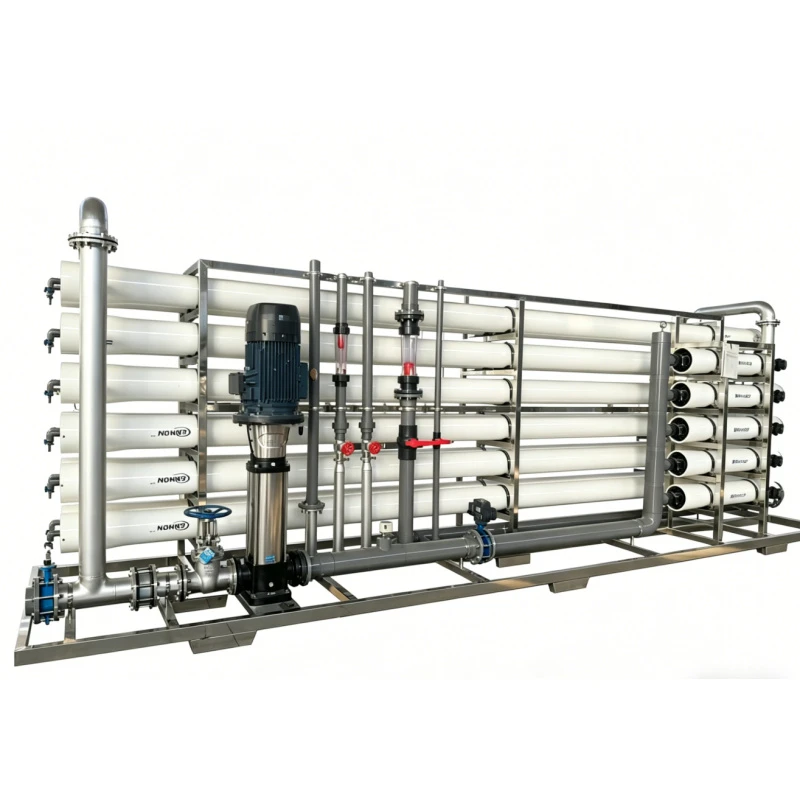

Qhov no 6 m³ / h kev kho dej rov qab osmosis (RO) dej kho yog cov dej ua kom huv huv, ua rau nruab nrab - mus rau - kev lag luam loj.

Qhov kev lag luam rov qab osmosis no txhawb nqa 24/7 kev ua haujlwm tas mus li kom haum rau koj qhov siab - siv zog ntau lawm. Nws los ua ntej- sib dhos nrog txhua qhov tsim nyog ua haujlwm, yog li koj tuaj yeem ua tiav ntawm - qhov chaw teeb tsa sai, thiab muab lub kaw lus tso rau hauv kev siv yam tsis muaj kev sib dhos ua haujlwm ntxiv. Nws tuaj yeem xa tau zoo ib yam, ruaj khov siab - dej huv tsis tu ncua kom tau raws li koj cov kev xav tau ntau lawm.

Feature Highlights

High -purity tso zis: Nws muab 6 m³ / h purified dej nrog conductivity Tsawg dua los yog sib npaug rau 10 μS / cm, uas ua tau raws li cov qauv purity nruj ntawm cov siab tshaj -xav tau kev lag luam.
Muaj txiaj ntsig desalination: Nws ua tiav ntau dua lossis sib npaug rau 99% kev tsis lees ntsev thiab Ntau dua lossis sib npaug li 70% dej rov qab. Qhov no txiav koj cov dej pov tseg thiab ntev - cov nqi ua haujlwm tau zoo.
Kev tiv thaiv pretreatment: Ua-hauv ntau- cov ntxaij lim dej tiv thaiv cov tub ntxhais RO daim nyias nyias los ntawm clogging, oxidation thiab scaling, uas txuas ntxiv cov khoom siv lifespan ntau.
Zog-txuag tsim: Tag nrho cov teeb tsa lub zog ntawm tag nrho lub cev yog Hais Txog Tsawg dua lossis sib npaug li 8.5 kW, uas ua rau koj cov nqi hluav taws xob txhua hnub nyob rau theem qis.
Dav adaptability: Nws ua haujlwm ruaj khov nrog ntau hom dej nyoos, thiab tuaj yeem tswj tau TDS txog 2000 ppm thiab pub dej kub ntawm 5-45 degree.

Technical Specifications

Core Performance Parameters
Parameter	Specification
Permeate Flow	6 m³/h
Salt Rejection Rate	Ntau dua lossis sib npaug li 99% (Max 99.5%)
Tus nqi rov qab dej	Ntau dua lossis sib npaug li 70%
Qhov hluav taws xob conductivity	Tsawg dua lossis sib npaug li 10 μS / cm
Kev Ua Haujlwm Siab	1.0-1.6MPa (≈10-16 bar)
Tag Nrho Cov Hluav Taws Xob	Tsawg dua los yog sib npaug li 8.5 kW
Max Pub Dej TDS	Tsawg dua lossis sib npaug li 2000 ppm
Pub Dej Kub Kub Ntau Yam	5-45 degree

Qhov System Cheebtsam
Tshooj	Cheebtsam	Paub meej
Kev kho mob ua ntej	Raw Dej Tank	1200L, SS304, 1set
Kev kho mob ua ntej	Quartz xuab zeb lim	1000*1900
Kev kho mob ua ntej	Activated Carbon Lim	Φ1000 × H2300mm
Kev kho mob ua ntej	Precision Lim	240×L1500
RO System	RO Cov Membrane	8040 High Rejection type, 6 daim
RO System	Membrane Tsev	8040-2, FRP, 3 units
RO System	Conductivity Meter	0-2000μS / cm, 2 units
Hluav taws xob & Piping	Tswj System	PLC Tsis Siv Neeg Tswj, 1set
Hluav taws xob & Piping	Tswj txee	Standard Configuration, 1set
Hluav taws xob & Piping	Pipes & Valves	DN50/40/DN25/DN20/DN15, PN16, SS304/U-PVC, 1 ntau
Hluav taws xob & Piping	Ntshiab Dej Tank	6m³, SS304, 1set

Daim ntawv thov

Electronics

Nws muab ultra- dej ntshiab los tiv thaiv koj cov chips rhiab thiab cov khoom, ua tau raws li cov qauv nruj ntawm cov khoom siv hluav taws xob.

Khoom noj & dej haus

Nws tshem tawm tag nrho cov kab mob phem los ntawm cov dej nyoos, ua kom koj cov khoom muaj kev nyab xeeb thiab ua tau raws li cov qauv kev nyab xeeb thoob ntiaj teb.

Lab siv

Nws muab cov dej ntshiab ruaj khov, zoo ib yam rau koj qhov kev sim thiab kev sim, txiav koj tus nqi ntawm kev yuav cov dej hauv lub raj mis kim kim.

Customization Options

Flow Rate Kho

Peb tuaj yeem kho qhov system tso zis ntws, tsim cov tshuab me me lossis loj dua raws li koj qhov kev thov dej ntau lawm.

Khoom siv kho dua tshiab

Koj tuaj yeem hloov kho qhov tseem ceeb rau SS316L stainless hlau, uas ua haujlwm zoo rau cov dej corrosive pub dej lossis siab -kev lag luam tu cev.

Automation Pob

Koj tuaj yeem ntxiv PLC tswj qhov system, uas tso cai rau koj saib xyuas lub sijhawm ntawm lub sijhawm thiab txo qis kev ua haujlwm rau koj pab neeg.

Ntxiv Pretreatment

Peb tuaj yeem ntxiv cov lim dej tshwj xeeb ua ntej, ua rau lub cev ua haujlwm ruaj khov txawm tias muaj cov dej tshwj xeeb xws li siab -TDS dej.

Kev pabcuam OEM / ODM

Peb txhawb OEM / ODM tag nrho, thiab peb tuaj yeem ntxiv koj lub logo lossis kho cov qauv tsim kom haum rau koj cov kev xav tau ntawm kev lag luam.

Vim li cas thiaj xaiv peb?

10+ xyoo dhau los ntawm kev lag luam

Peb muaj ntau tshaj 10 xyoo kev paub hauv kev kho dej, thiab tau pab ntau txhiab tus neeg siv khoom thoob ntiaj teb.

Txheeb xyuas qhov tsim nyog

Peb tuav ISO9001. Tag nrho peb cov khoom ua tau raws li cov qauv zoo thoob ntiaj teb.

Ib - nres turnkey kev daws teeb meem

Peb tswj tag nrho cov txheej txheem los ntawm kev tsim, tsim khoom, kev teeb tsa mus rau tom qab - muag. Koj tsis tas yuav ua haujlwm nrog ntau tus neeg muag khoom, vim peb saib xyuas txhua yam rau koj.

Muaj zog R & D muaj peev xwm

Peb muaj peb tus kheej R & D chaw, yog li peb tuaj yeem daws cov teeb meem kev kho dej rau koj.

FAQ

Q1: Vim li cas lub kaw lus muaj ntau lub lim dej ua ntej?

Txhua lub lim dej ua haujlwm los tiv thaiv cov tub ntxhais RO daim nyias nyias ntawm ntau txoj kev. Lawv tshem tawm cov khoom loj, cov tshuaj chlorine thiab dej hardness cais, uas ua rau kom tag nrho cov kev pab cuam lub neej.

Q2: Peb puas tuaj yeem kho cov cuab yeej no?

Yog lawm, peb txhawb kev hloov kho tag nrho thiab kev pabcuam OEM / ODM. Koj tuaj yeem qhia peb koj cov kev xav tau tshwj xeeb xws li tus nqi ntws lossis dej tsis zoo, thiab peb yuav tsim cov kev daws teeb meem uas haum rau koj.

Q3: Koj puas yog cov chaw tsim khoom lossis cov tub luam?

Peb yog cov chaw tsim khoom ncaj qha nrog peb tus kheej lub Hoobkas hauv WeiFang. Peb koom ua ke R&D, ntau lawm thiab kev lag luam ua ke, yog li peb tuaj yeem muab koj lub Hoobkas - cov nqi ncaj qha thiab cov kws tshaj lij kev ntseeg siab tom qab- muag kev txhawb nqa.
